The Eames Dreamhouse
A modular dollhouse inspired by The Eames House
(2019)

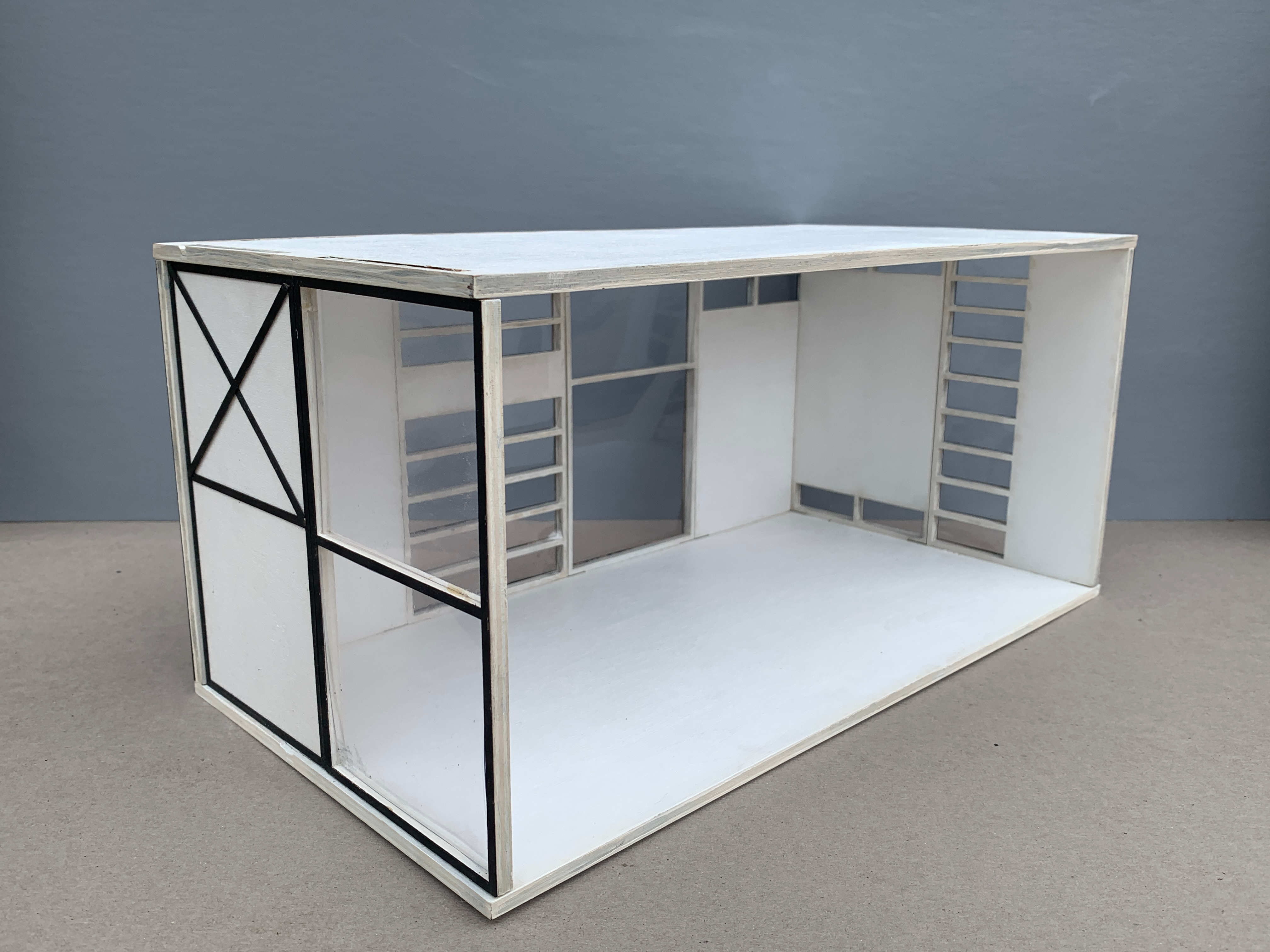

I wanted to create a dollhouse that was based on Charles and Ray Eames Case Study House #8 in both its physical design and functionality. To do this, I created an interchangeable design that is reminiscent of the original house’s use of pre-fabricated and off-the-shelf pieces. This also allows for an individualized creation. The pieces were laser cut and then handpainted in a style reminescent of Mondrian—one of the inspirations for Charles and Ray Eames.
// 01
Beginning Ideation
Originally, when exploring the Eames house I pulled out a few notable qualities that I wanted this design to have incorporated into it: individualization and interchangeability. Taking this into account, I began ideating on ways to create interlocking modules that could be changed out to reflect the user’s taste, all while allowing for an increased amount of tactile engagement. Then came the question: how should the overall house be designed?
// 02
// 02

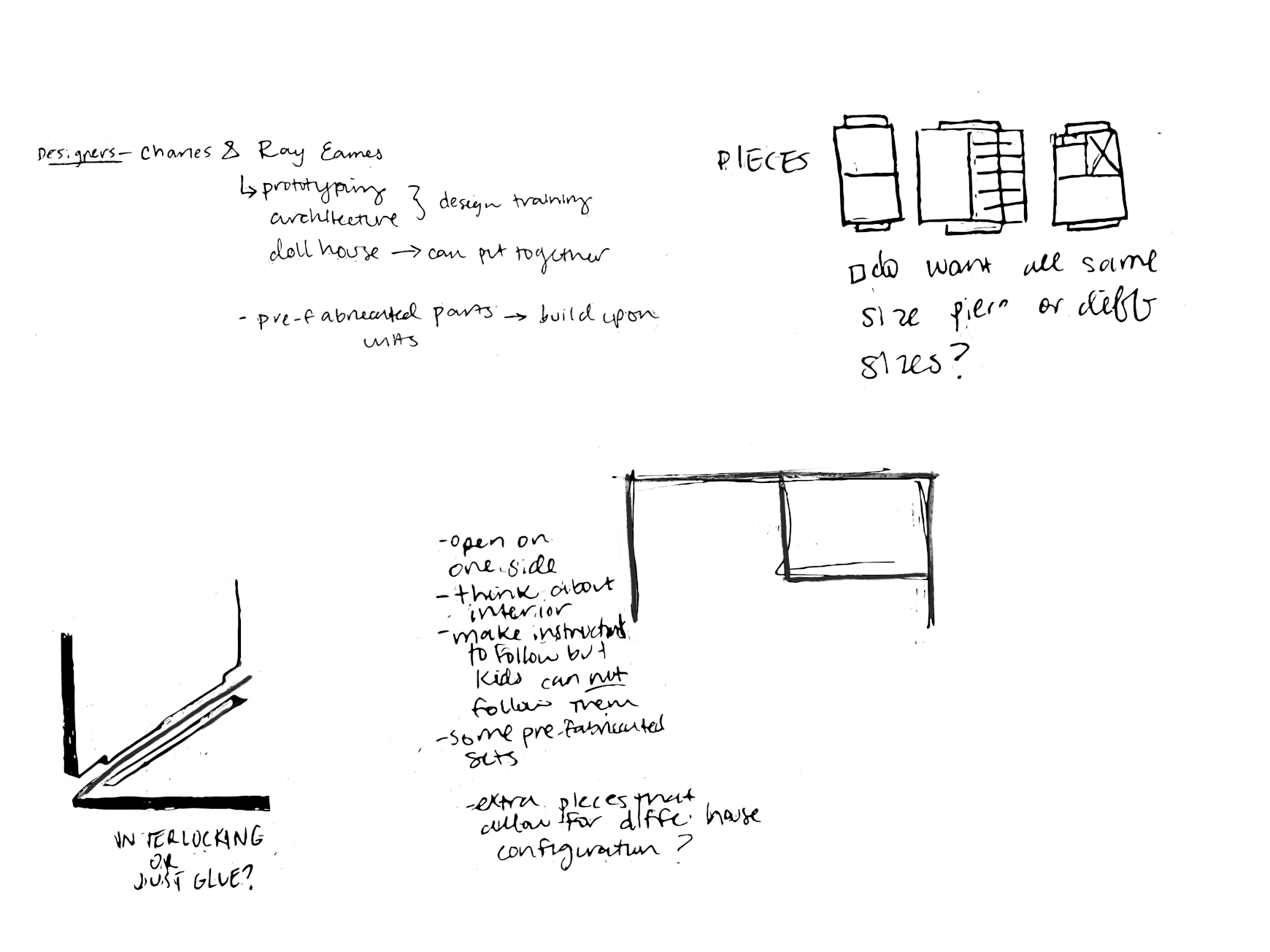

Initial Sketching
In consideration of the house design, I began looking into ways that the artistic element of the Eames house could be incorporated. The original house by Charles and Ray Eames has a clear nod to Mondrian and his art. From here, I decided on making the exterior mimic this geometric style.
// 03
Options
Finally, I came up with three options for the form of the house. The first is entirely enclosed, making the dollhouse focus soley on the exterior. Second, is an open front house with a loft. This allows for a more intricate look; however it complicates the modular pieces I wanted to develop and limits customization. Third, is an open front, open layout, allowing for interior customization and an infinite amount of wall designs.
// 04
Packaging idea
As a way to push this concept further, I developed a packaging idea for the dollhouse. While it is simple in nature, the modular pieces allow for easy stacking, making rectangular packaging the best option.
// 05

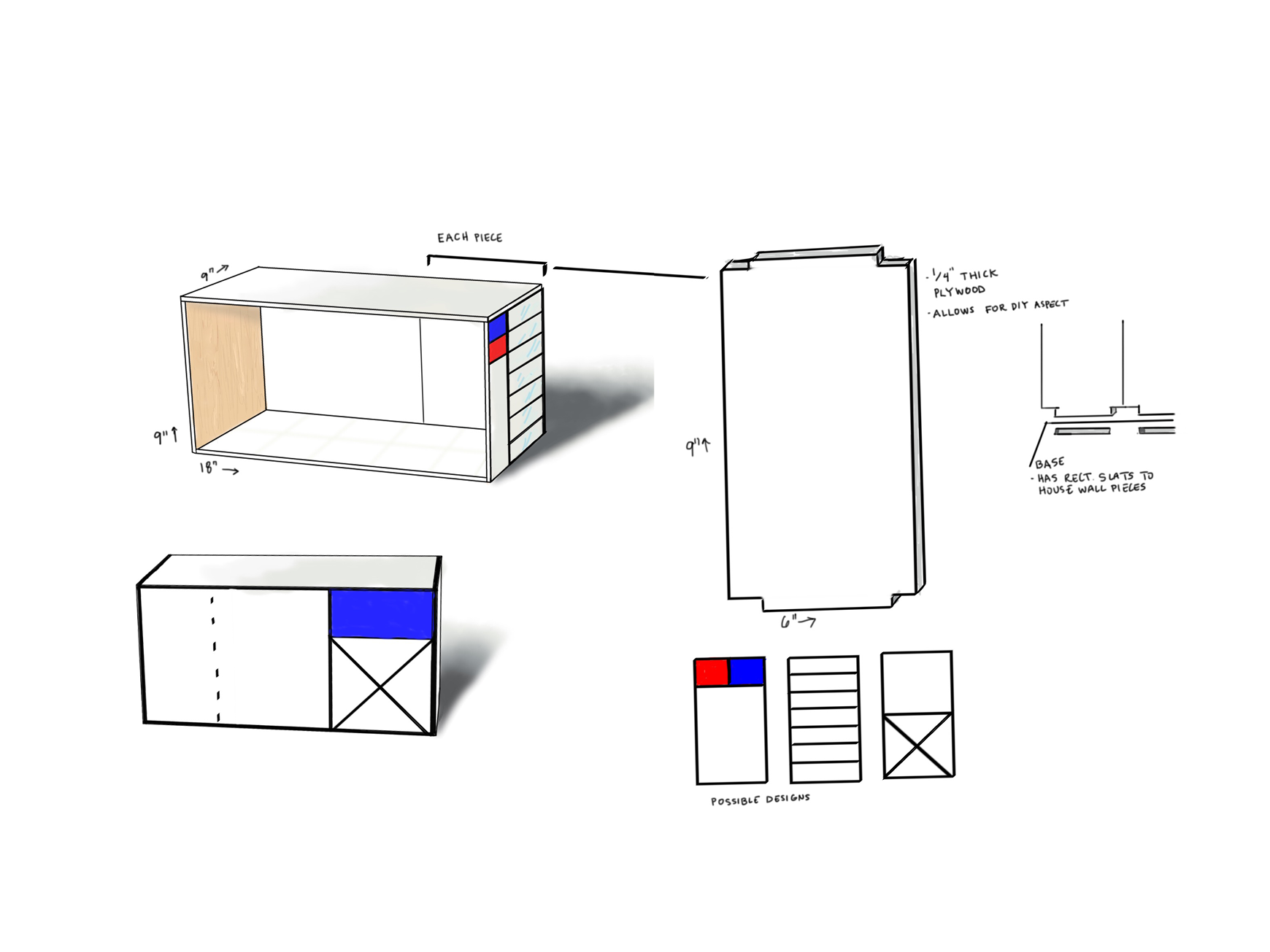

Digital Sketching

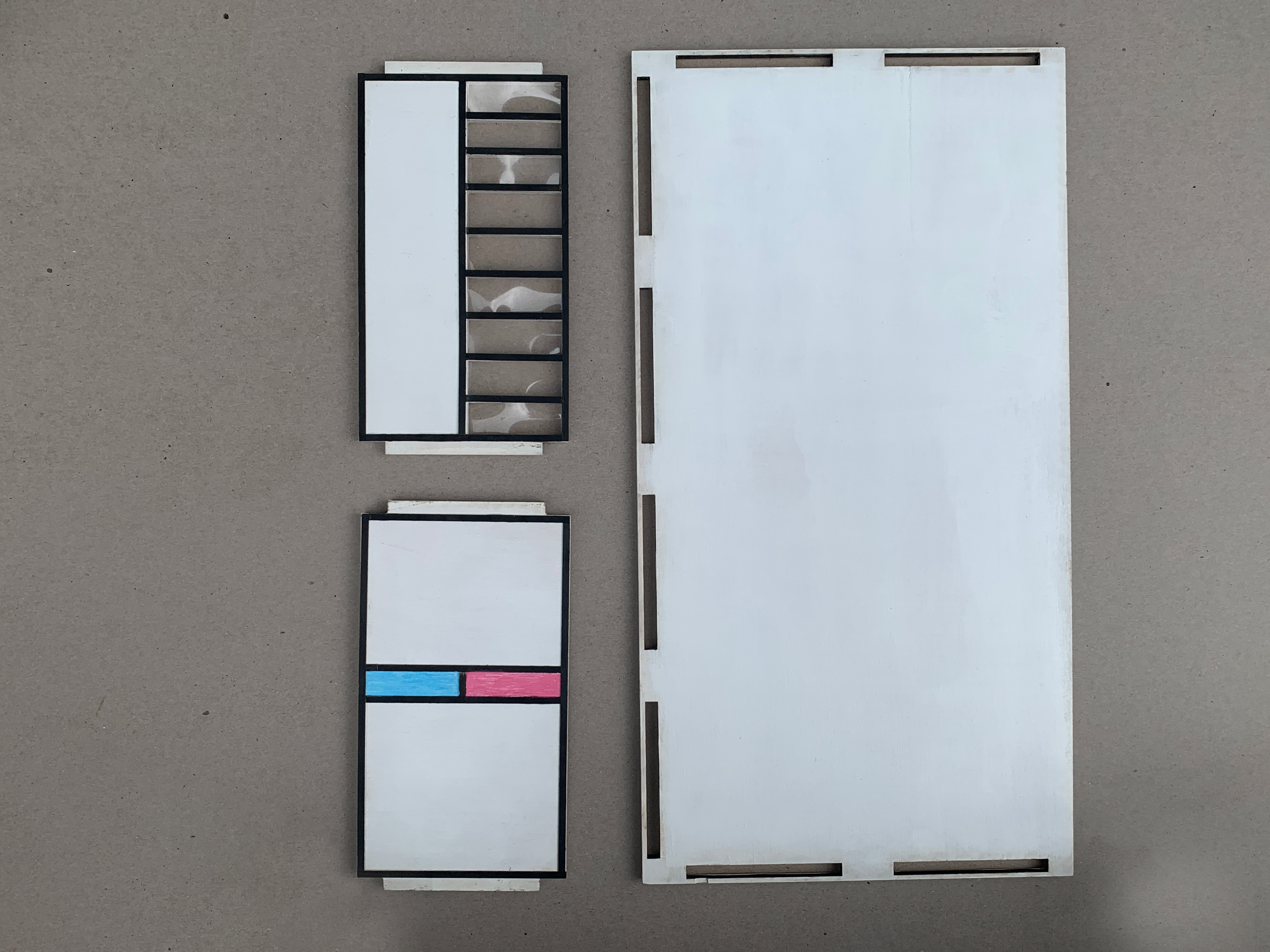

Going into the development stage, I first created a digital sketch of the house itself as well as the modular pieces that would be used to create the interchangeable walls. This allowed me to easily communicate the idea and solve any sizing issues.
// 06

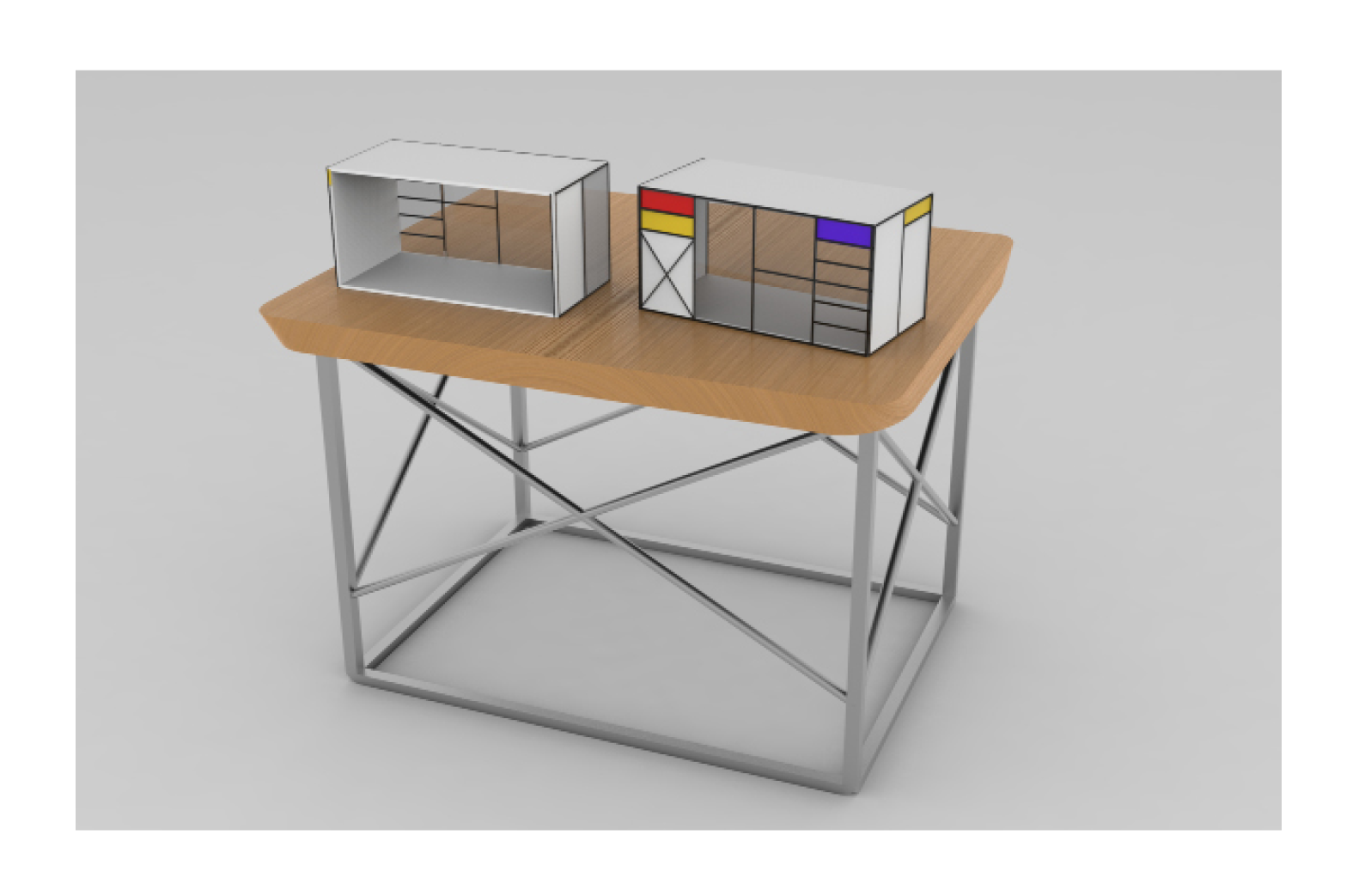

3D Modeling
From here I moved into 3D modeling so that I could determine how the output would look once it was created. This was an important step in helping me determine the overall scale of the piece as I was able to see it in a more environmental context, allowing me to manipulate the sizing of it as needed.
